4-stroke All Terrain Tracked Transport Vehicle

4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle
4-stroke All Terrain Tracked Transport Vehicle

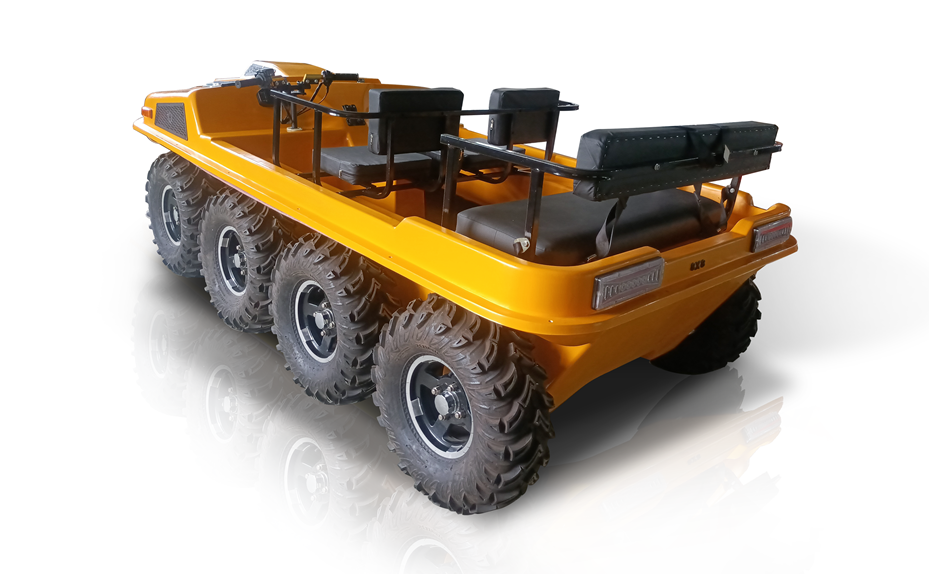

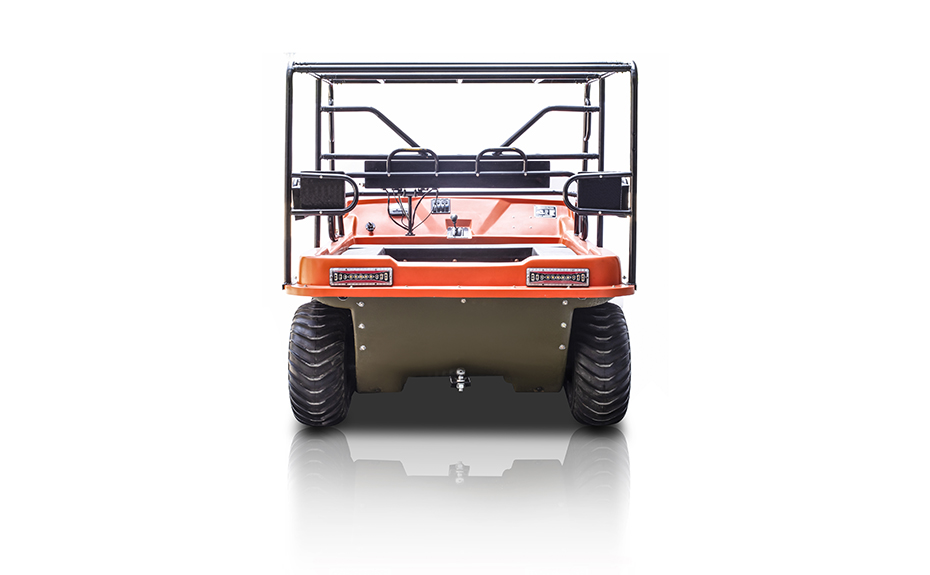

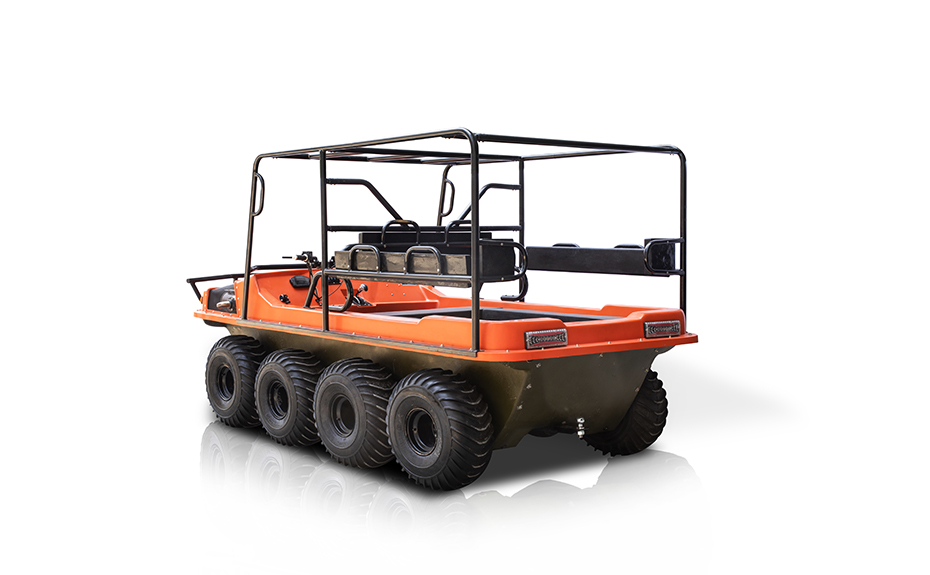

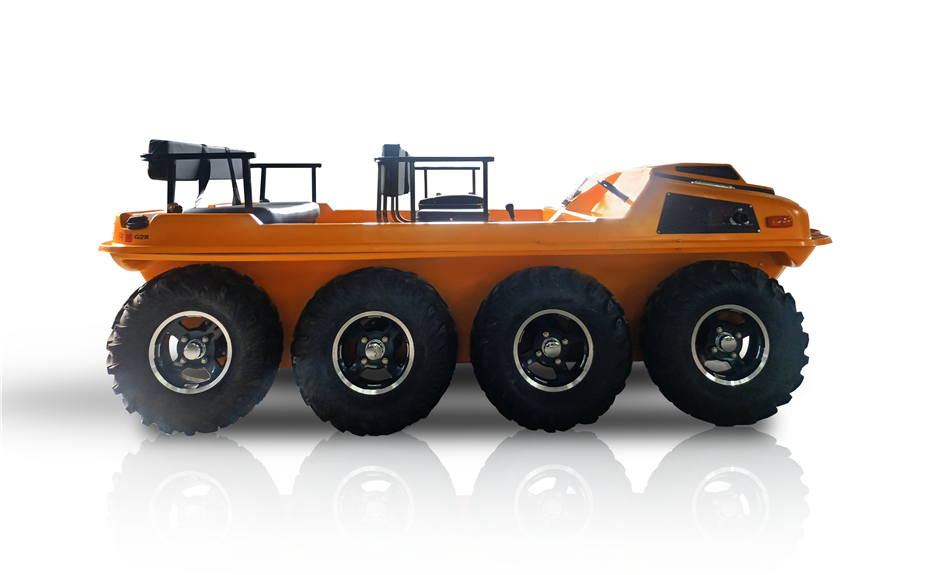

8x8 Amphibious All-Terrain Vehicle adapts 8x8 all-wheel drive, differential speed for braking and turning, continuously variable transmission, wholly sealed vehicle body and aquatic propeller-driver. It is able to climb the slope of 45°, rotate for semicirce. It can run at a high speed of 50km/h, and stat up in ultra environment with differentail temperature ±45℃ celsius degree and remain running for a long time. Additionally, it can also keep running fast over such earth's surfaces. Based on this vehicle, a new design for fire fight is came out which called 8X8 Amphibious Fire Truck.
color：
Contact now Ask a question
  • parameter
  • description

  • Body parameters

    Body size

    3495*1770*1240mm

    wheelbase

    700*700*700mm

    Curb weight of the whole vehicle

    830KG

    tread

    1500mm

    Rated load

    Land 700kg (or 8 pax)

    Minimum ground clearance

    270mm

    600kg on water (or 6 people)

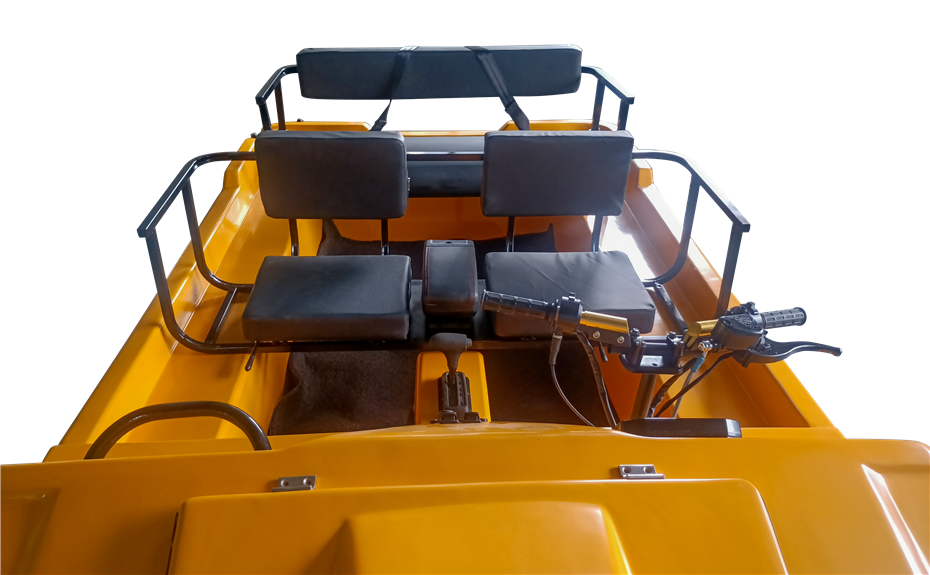

    Number of seats

    8 pcs

    Performance parameters

    Kinetic parameters

    Startup mode

    Triple insurance one-button electric start

    Engine model

    SQR372

    Ignition method

    EFI

    Engine type

    In-line three-cylinder, four-stroke, water-cooled, overhead twin camshafts

    Battery specifications

    12V/85Ah

    Engine displacement

    800cc

    Drive form

    Land: All-wheel drive

    Compression ratio

    9.5 : 1

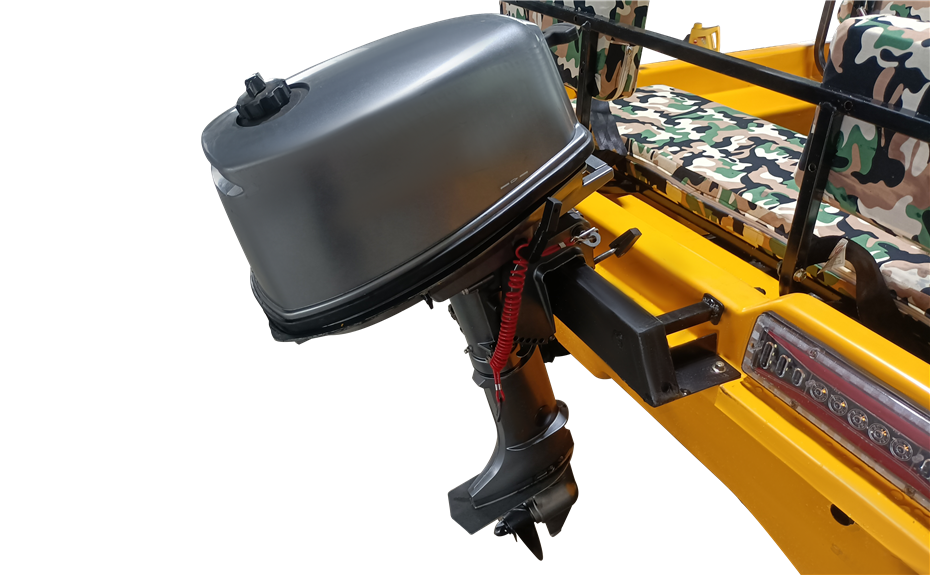

    Water: Jet pump propulsion

    Rated power and speed

    39kW(6000±50r/min)

    Top speed (land)

    65km/h

    Maximum torque and speed

    70N ·m(3500～4000 r/min)

    Maximum speed (on water)

    15km/h

    idle speed

    850±50r/min

    Obstacle crossing height

    450mm

    Lowest fuel consumption rate

    275g/(kW ·h)

    Minimum turning radius

    Turn left 610mm; Turn right 600mm

    Fuel grades

    Unleaded gasoline of 92# and above for vehicles

    Maximum climb angle

    48 °

    Lubrication method

    Composite (pressure, splash lubrication)

    Approach angle

    56.8 °

    Clutch mode

    CVT

    Departure corner

    76.4 °

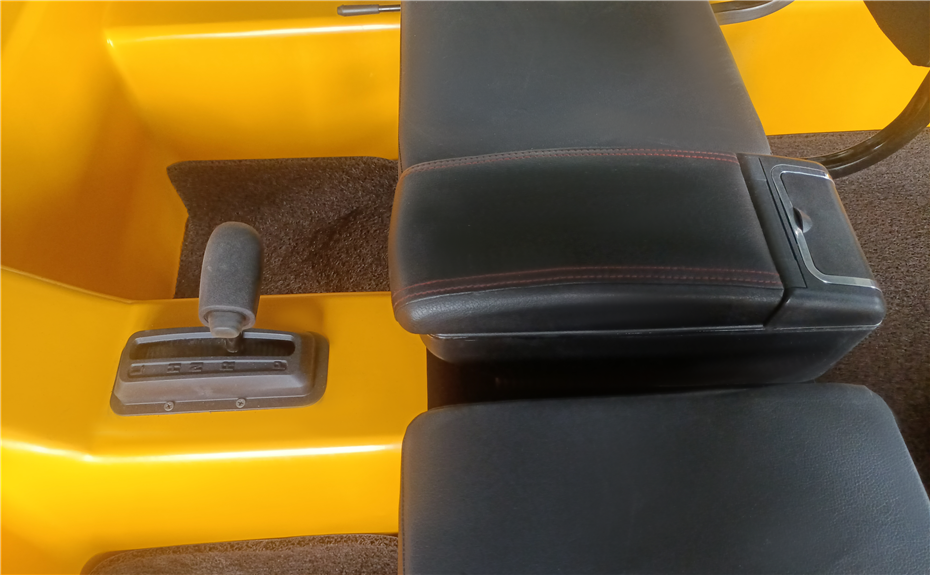

    Variable speed type

    CVT + 2-speed forward gear, neutral gear, reverse gear

    Braking method

    Caliper disc hydraulic brakes

    Ancillary facilities

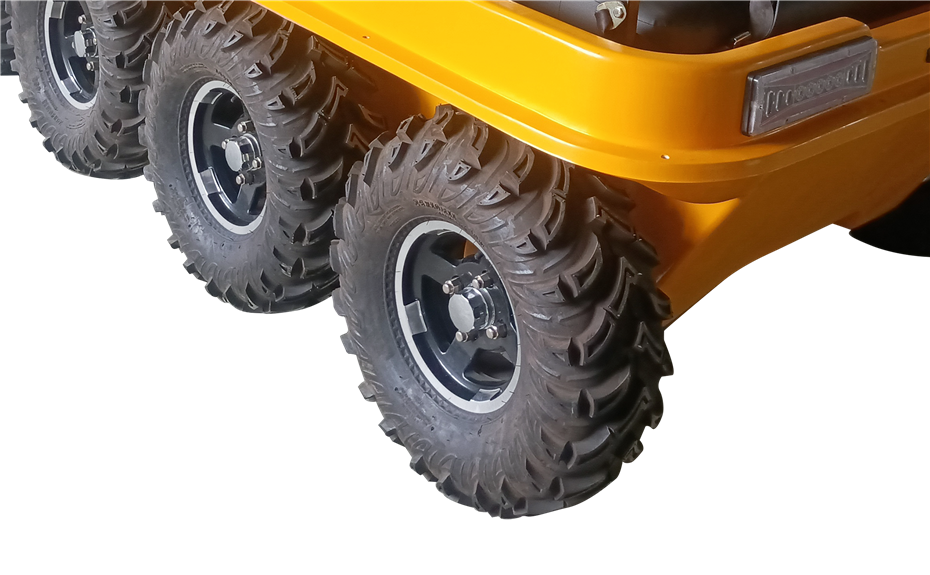

    Tire specifications

    25*12-9NHS

    Tire pressure

    5-7psi(34.5-48.3kPa)

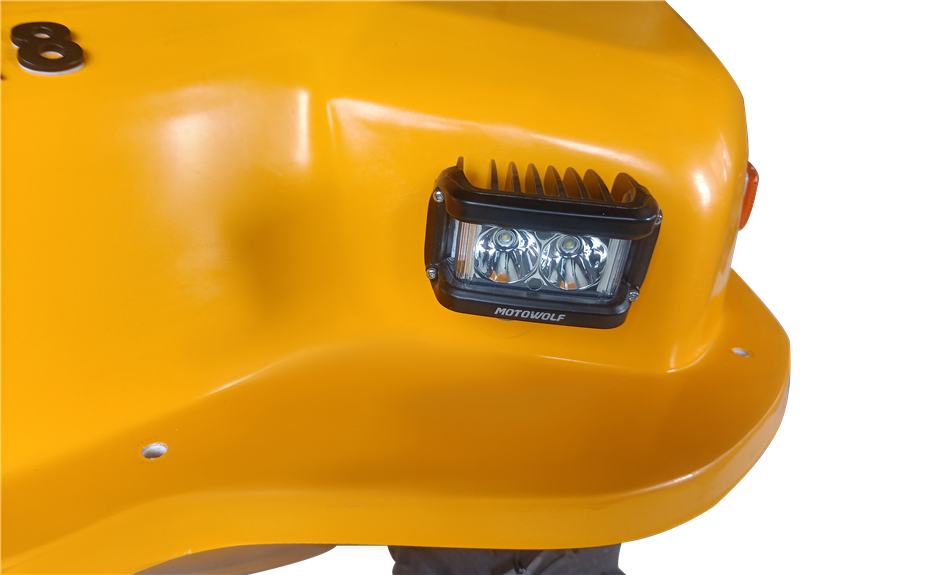

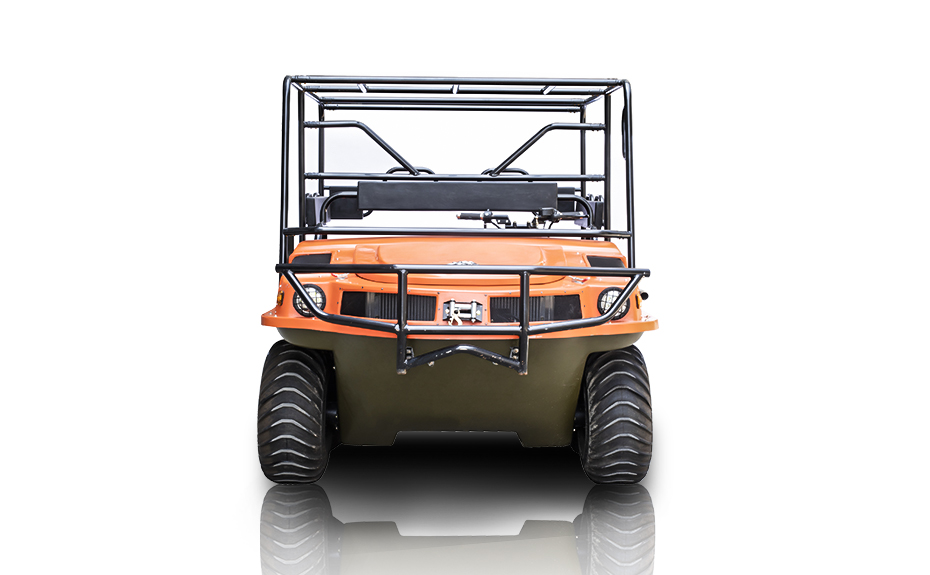

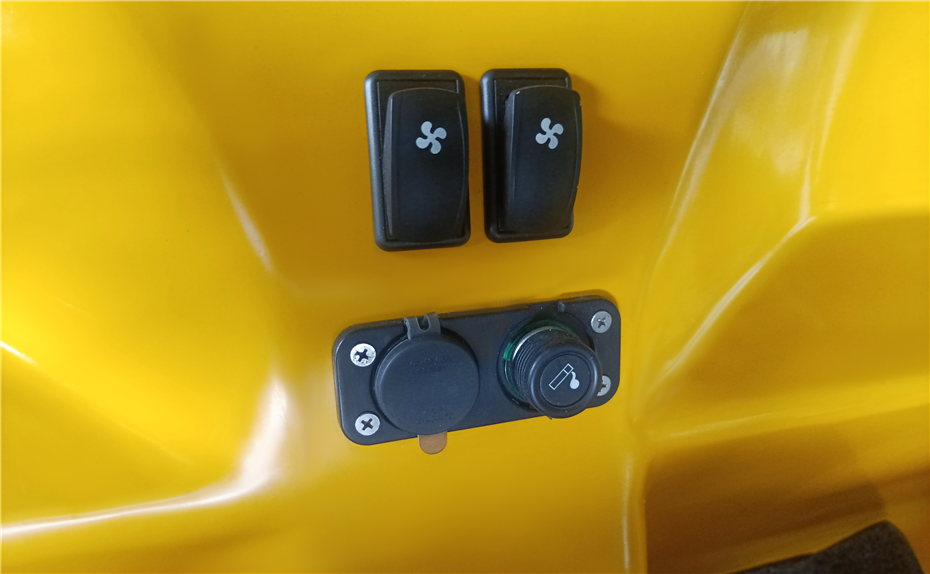

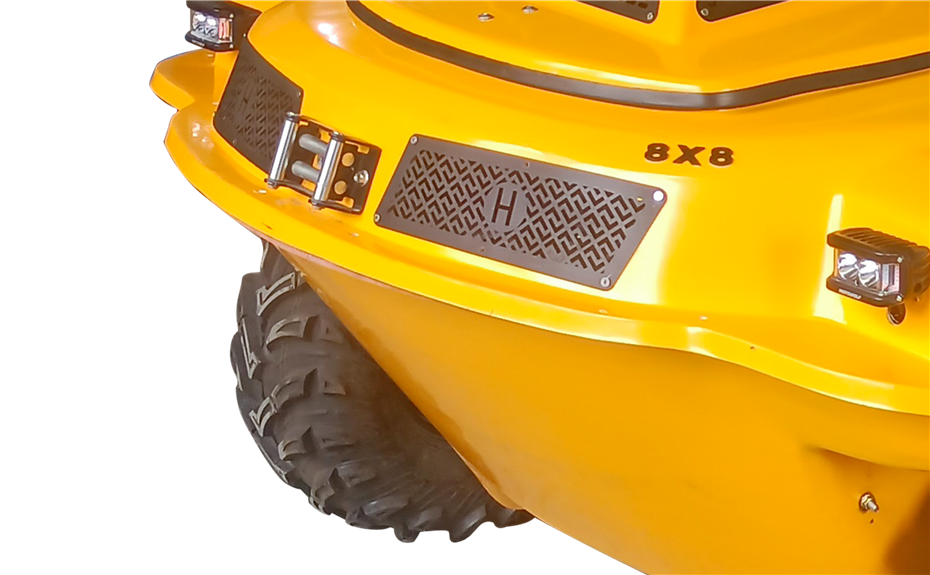

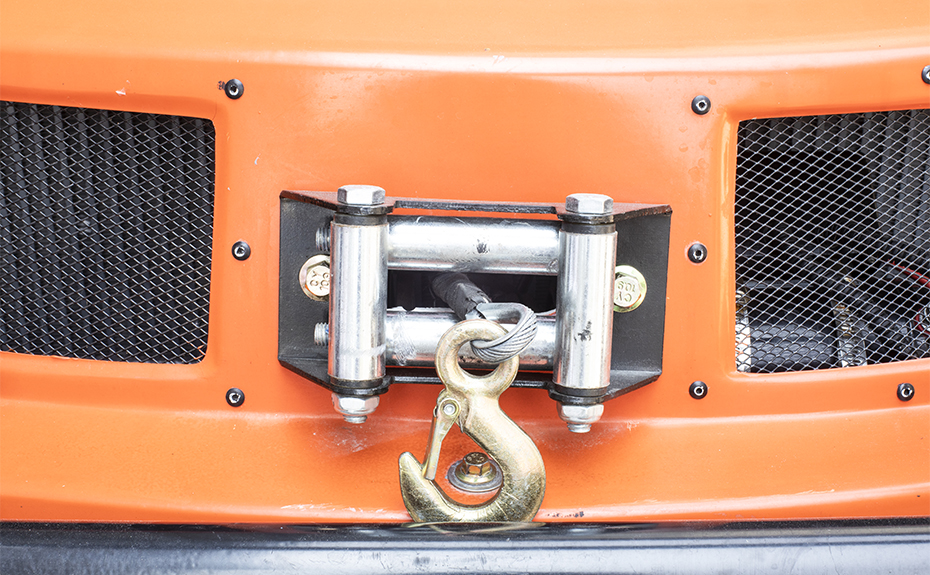

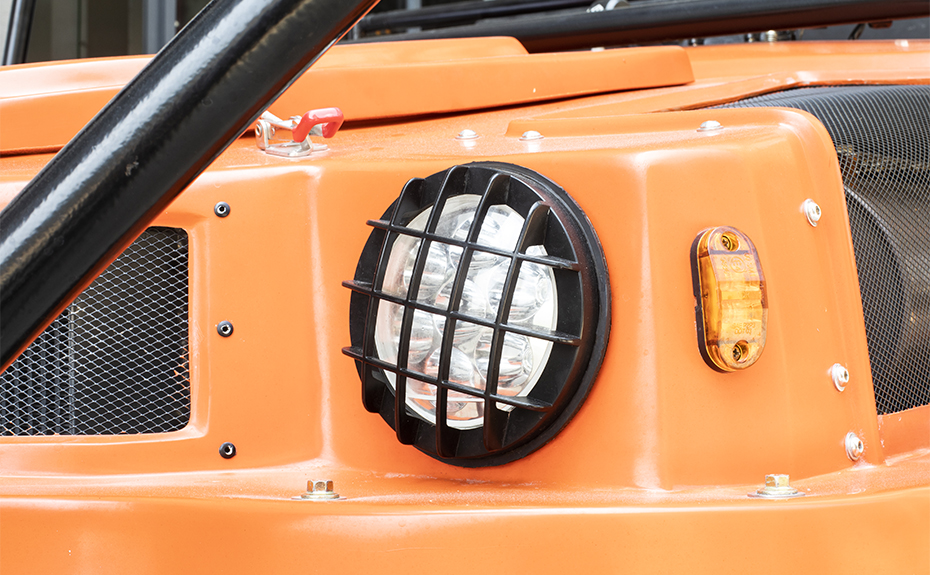

    Winches, pontoons, bumpers, drains, canopies, rollover frames, combination charging sockets, off-road lights, car covers, tool bags, trailer balls, etc

    Transmission mode

    Gearbox shaft drive
